Features:

Unwind Web Guiding Device for Web Alignment

• CCD photocell for printing line and edge.
• Lateral movement up to +/- 75 mm.

Unwind Tension Control

• Motor driven control.
• Disc brake can be used instead.
• Loadcell + Dancer Roller auto feedback control.

Flexibility and Modularity

• Capable of adding inspection / splice table.
• Capable of adding stroboscope.
• Overhead web path offers a hygienic work environment.

Shaftless Unwind Stand

• Left/right unwinding frame can move together or separately and with pneumatic clamping function.
• With hydraulic system lifting from floor level to working position.
• Additional remote controller on unwind side for major setting.

PLC & HMI Control System

• 15” color touch screen with graphical user interface.
• Remote connection modification function.
• Slitting width setting function.
• Production mode can be selected between manual/semi-automatic/fully-automatic.

Main Drive & Rewind Tension Control

• Four individual motors control the main drive, upper and lower rewind shafts and turret rotation separately.
• Non-stop automatic shaft change support device (Patent No. M620523)

Turret Rewind Device

• The upper/lower rewinding shaft set is equipped with two ball-type differential shafts, and with a roll diameter calculation system to automatically control the rewinding tension.
• Automatic cutting, pasting and change winding shafts when the pre-set length or rewind OD is reached.

Various Automation Equipment

• Auto cutting and pasting.
• Finished roll pusher.
• Paper core auto positioning.
• Turret rotation and up/down unloading.

Video:

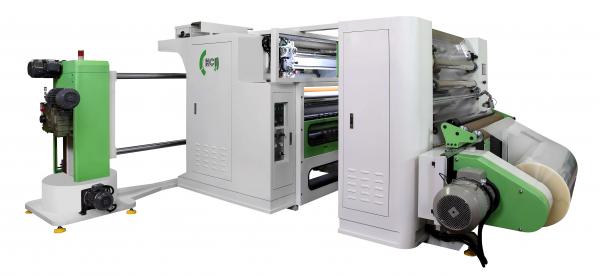

FSL-TR series Turret Rewind Slitting Machine
