Doctoring and Rewinding Machine

Doctoring and Rewinding Machine

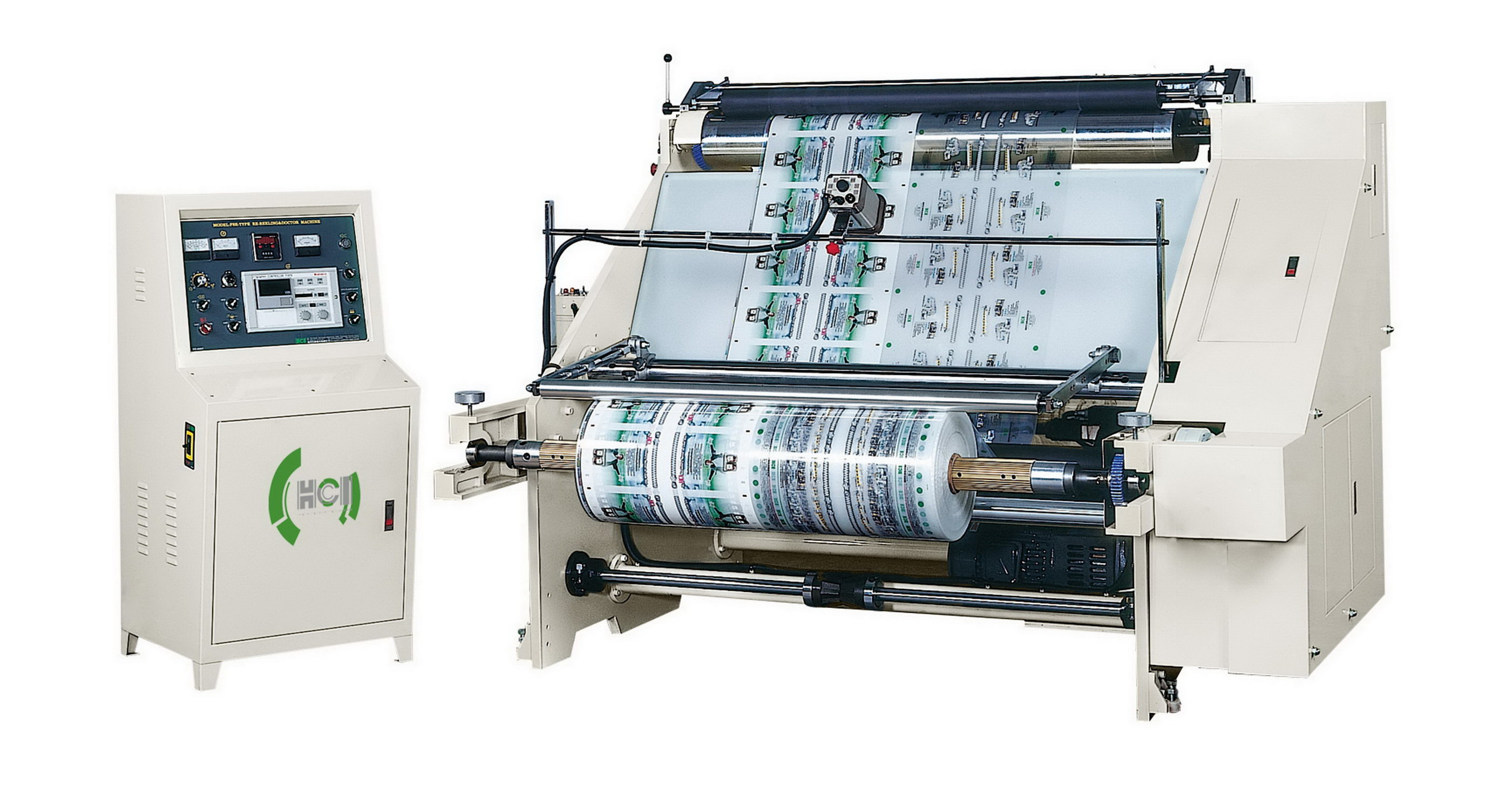

Roll Doctoring Machine

Product ID: FSE

  • Quality inspection of round rolls.
  • Surface inspection after printing.
  • Roll small rolls into big rolls or vice versa.
  • For quality inspection for converting materials, electronics, computer and optical materials, film roll and foil roll.

Features:
  • The unwind stand is easily adjusted to accommodate a variety of materials and sizes.
  • Adopted edge guiding system, the smoothest rewinding edge is ensured.
  • Large diameter driving wheels are made of rubber to prevent marking scrape of web.
  • A magnetic powder clutch ensures the correct tension for different materials.
  • Equipped with observed board and fluorescent lamps for visual inspecting.
  • Equipped with statics eliminator and rewind lay-on roller.
  • Equipped with defective material winder which can wind the waste web onto directly.
  • Optional Accessories
    • Unwind tension auto controller with load cell sensor.
    • Rewind tension auto controller.
    • 1000 width synchronic flash light.
See more complete detail
SpecificationsFSE-1600 Rewinding and Doctoring Machine
Mechanical Speed [m/min] 0-150
Unwind Stand Floating Type
Unwind Core Inner Diameter [mm] 76 / 3"
Unwind Web Width [mm] 300-1600 (1000 / 1300)
Maximum Unwind Diameter [mm] 600
Unwind Tension Control Magnetic Powder Brake
Web Guiding System Edge
Rewind Core Inner Diameter [mm] 76 / 3"
Maximum Rewind Diameter [mm] 600
Rewind Tension Control Magnetic Powder Clutch
