Differential Shaft / Friction Ring

Differential Shaft / Friction Ring

Friction Ring

Differential Shaft / Friction Ring

Differential Shaft

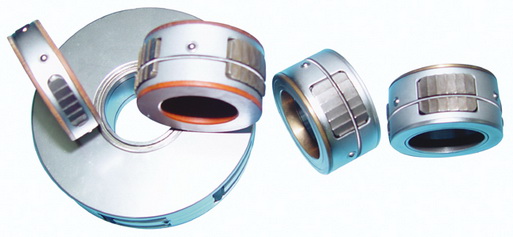

Product ID: HCI Quick Lock Ring

For differential shaft use- HCI quick lock ring can handle various torqueses between differential shaft and friction ring providing uniform rewinding tension for each reel. Rewinding speed difference caused by material thickness variation can be compensated by the sliding motion that ensures consistent tension at all times.

Features:
    • HCI self-developed Differential Shaft & Friction Ring, PATENT NO. 186461
    • Designed for convenient replacement of paper core without scratching. Offers the same convenience as an air shaft.
    • Suitable for fitting on a new or used slitting and rewinding machine without affecting the original machine's structure and operation.
    • Ball Type Friction Ring is available on HCI Slitting Machine as optional.ball type friction ring


See more complete detail

Specifications
3" Side Pressure Type Differential Shaft 3" Inner Pressure Type Differential Shaft
Ring Width [mm]
40 / 22 40
Clamping Range [mm]
75-77 75-77
Applied Models
FSL-T Superior Slitter
FSL-KA Practical Slitter
FSL-K Standard Slitter
FSL Economical Slitter
FSL-V Deluxe Slitter
