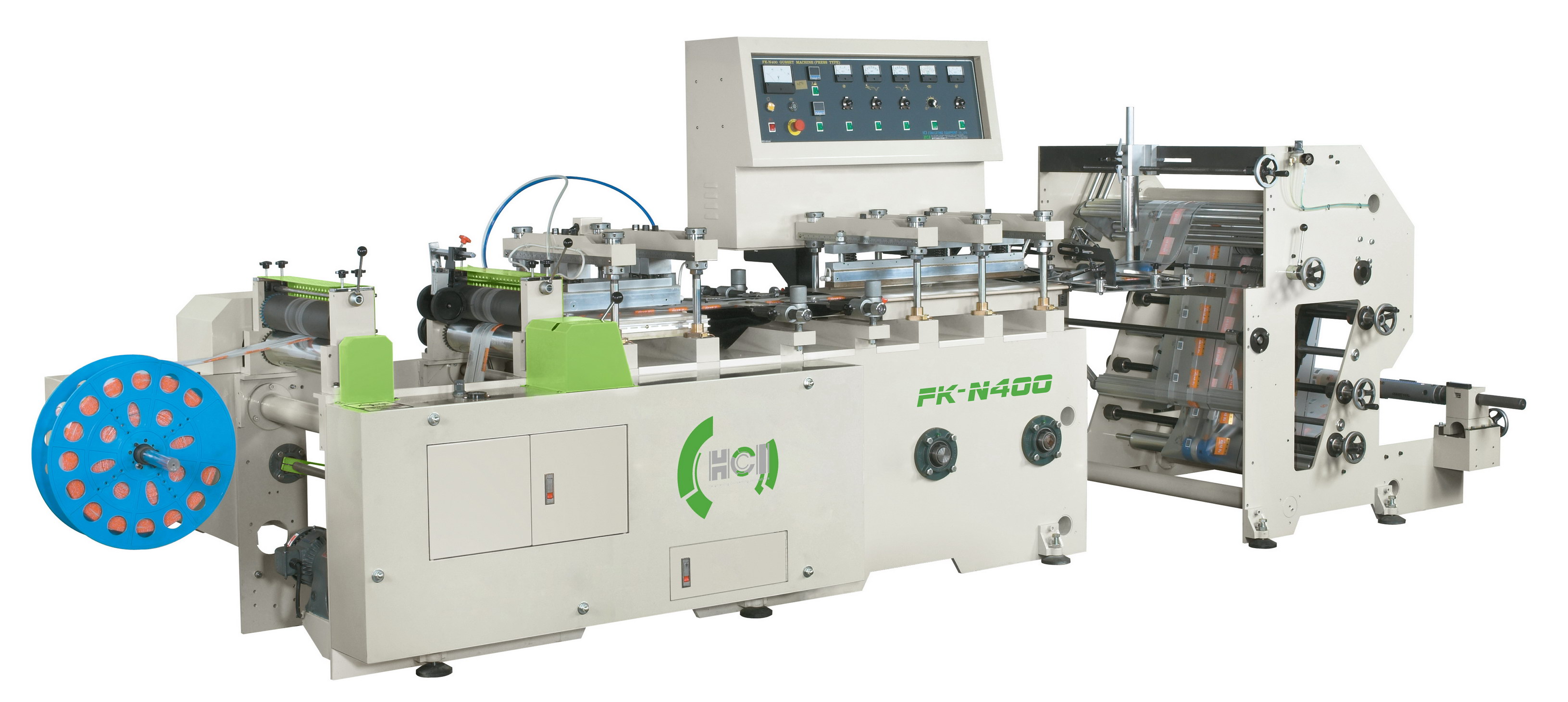

Center Seal and Gusset Machine

Center Seal and Gusset Machine

Center Seal and Gusset Machine

Product ID: FK-N

  • This machine is well suited for producing thick and multi-laminate film such as poly bags with center sealing and side gusseting.
  • When combined in operation with FSC-303 Three Step Bottom Sealing and Cutting Machine, it provides the same function as an in-line model Center Seal and Gusset Bag Making Machine.

Features:
  • All of the swing axle driving system components is specially designed for a longer service life and easy maintenance.
  • Three AC motors control system: main drive, feeding and pulling, upgrading the production speed.
  • Horizontal unwind stand and 3" air shaft.
  • Unwind side gusset device:
    • Mold plate is unnecessary for producing gusset bag when the bag's width over 110mm.
  • Adopts two different side gusseting methods:
    • Unwind gusseting device and middle gusseting unit using depends on the material characteristics.
  • Equipped with 1 set of center sealing embossing unit, 1 set of gusseting heater and gusseting cooler.
  • Auto temperature controllers provide the most accurate and fastest heating performance.
  • Equipped with rewinding buffer roller unit assures that the most stable winding tension even speed varied.
  • Replaceable rewind shaft is suited for five-claw coreless or 3" paper core.
  • Optional accessories
    • Web guiding system. (Edge)
    • Flat center sealing device.
    • Two side sealing device.
See more complete detail
SpecificationsFK-N400 Center Seal and Gusset Machine
Unwind Width [mm] 110-820
Unwind Diameter [mm] [max.] 450
Bag Width [mm] 50-400
Rewind Inner Diameter 300mm Five-claw coreless
Rewind Diameter [mm] 700
